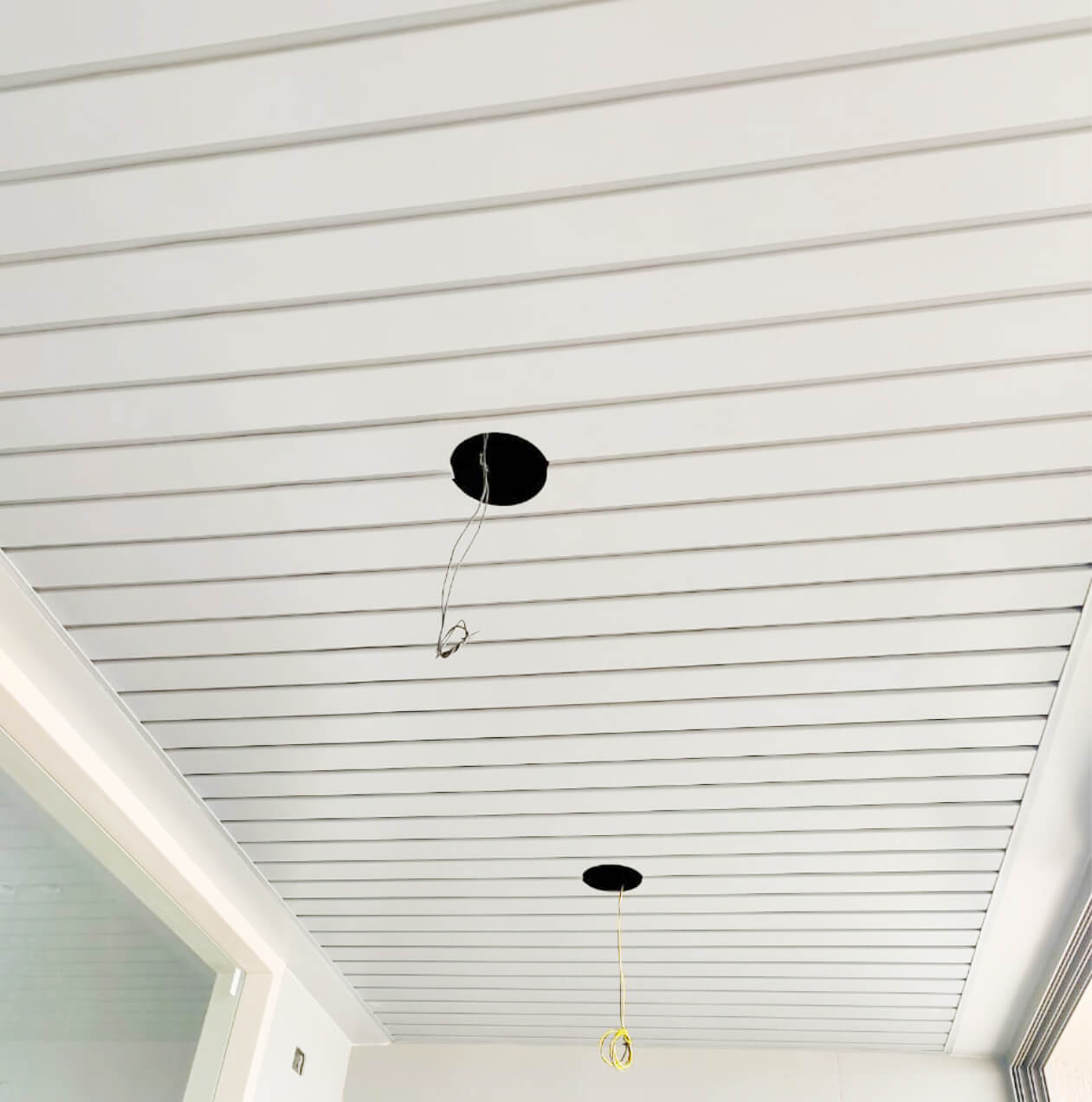

Linear 84C has been used extensively on exterior and interior applications and gives designers options for visual design continuity. Panels are clipped into the concealed suspension system to form a closed joint linear ceiling. It will give a rhythm to any Project, where colors & length come together. Various acoustical criteria can be met with the inclusion of acoustical inlays.

Technical Details

Panels: Square edge, 84mm wide, 12.5mm deep, length up to 5 mtr.

Material: Galvanized Steel 0.5mm/0.45mm,Aluminum 0.65mm/0.71mm - TCT.

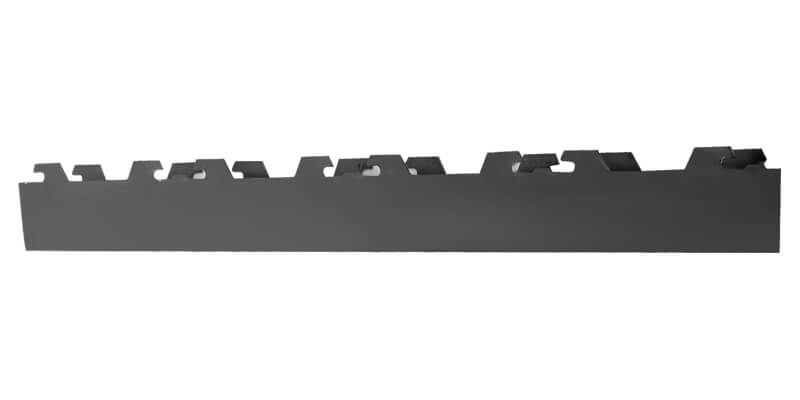

Carrier: Carrie shall be 20 mm wide at bottom and 39mm deep of 0.5mm Galvanized Steel stove enameled black to hold Panel in module of 100 mm.

Paint Finish: 55 microns thick powder coating on exposed surface or 25 microns polyester coil coatedover primer on visible surface with primer coat on rearside.

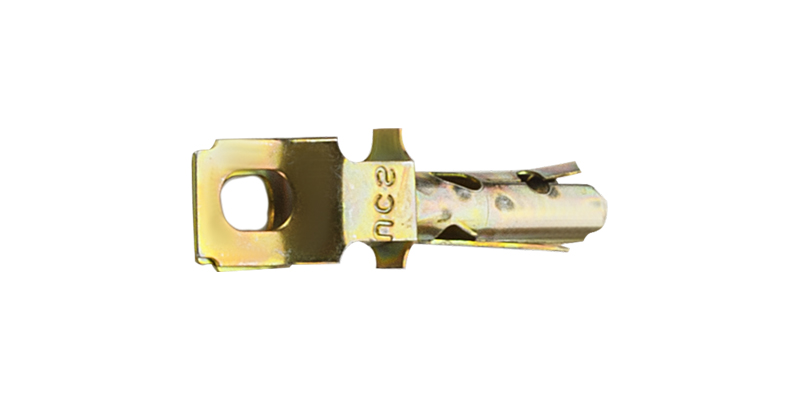

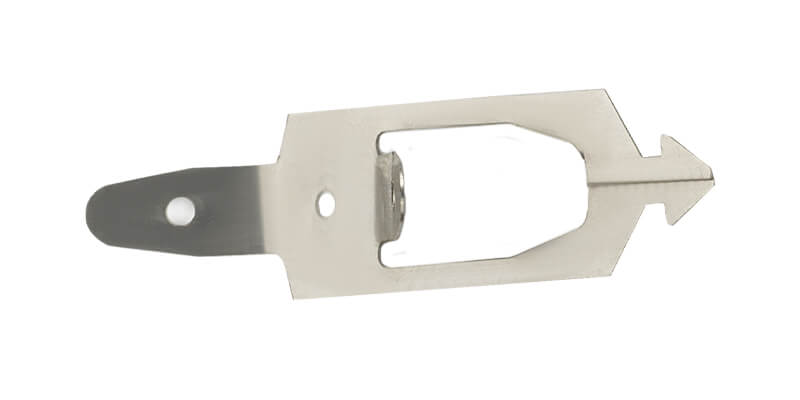

Suspension: Height adjustment Spring Steel Big clip. 4mm dia GS Rod, Panel coupler, Carrier coupler, GS/ Aluminum Edge Pro8le.

Product Features

• Easy to Install and Changeable
• Reusable-eco friendly
• Fireproof
• Weather Resistive
• Good Resell Value
• Ease of Maintenance
• Ultra Durable
